HVI 030 | 500W TO 700W
Applies to: The compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with fan, but is also available without axial fan (for self-installation). The fan heaters are available with two different mounting systems – either mounting by screw fixing or with a new and unique twist clip mounting system. These options allow for a quick and easy installation of the fan heater.
download> Compact > Temperature safety cut-out
> Flat design > Twist clip or screw fixing
> High air through-flow
The compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The heater may only be operated together with fan, but is also available without axial fan (for self-installation). The fan heaters are available with two different mounting systems – either mounting by screw fixing or with a new and unique twist clip mounting system. These options allow for a quick and easy installation of the fan heater.

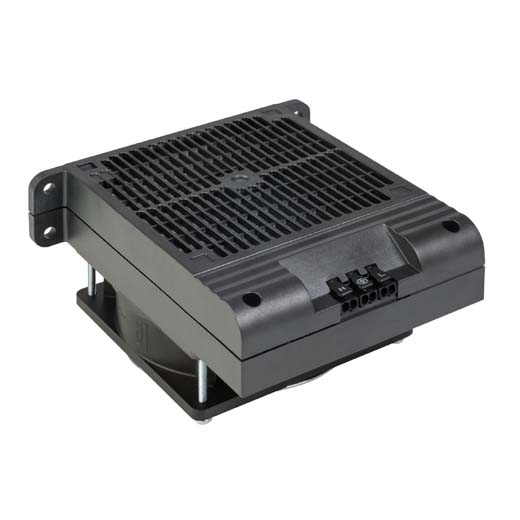

Space-saving Fan Heater HVI 030
| Art. No. twist clip fixing | Art. No. screw fixing | Operating voltage | Heating capacity | Recommended pre-fuse T (time-delay) |
|---|---|---|---|---|
| 03084.0-00 | 03084.0-01 | 230VAC, 50/60Hz | 500W | 4.0A |
| 03083.0-00 | 03083.0-01 | 230VAC, 50/60Hz | 600W | 4.0A |
| 03082.0-00 | 03082.0-01 | 230VAC, 50/60Hz | 700W | 6.3A |
| 03084.9-00 | 03084.9-01 | 120VAC, 50/60Hz | 500W | 8.0A |
| 03083.9-00 | 03083.9-01 | 120VAC, 50/60Hz | 600W | 8.0A |
| 03082.9-00 | 03082.9-01 | 120VAC, 50/60Hz | 700W | 10.0A |
