DCR 130 | DC 24V, DC 56V - 200W TO 800W
Applies to: The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or electronic hygrostat. The model with thermostat is available with internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and
download> High DC heating performance > Integrated switch module
> Integrated thermostat or hygrostat (optional) > Optional clip or screw fixing
> Small hysteresis > Optical indicator (LED)
The compact high performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The fan heater is available with an integrated electronic thermostat or electronic hygrostat. The model with thermostat is available with internal or external sensor. The fan heater with integrated hygrostat is equipped with an external sensor. The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity. The DCR 130 was designed for wall fixing. For fixing on the bottom of the enclosure the fan heater DCR 030 is recommended.
High-performance Fan Heater DCR 130
| Art. No. | Model | Operating voltage | Heating capacity | Recommended pre-fuse T (time-delay) | Setting range³ temperature / humidity |
|---|---|---|---|---|---|
| 13092.1-12 | Fan heater with integrated thermostat with internal temperature sensor | DC 24 V | 200 W | 16.0 A | -20 to +40 °C |
| 13092.1-13 | Fan heater with integrated thermostat with connector for external temperature sensor² | DC 24 V | 200 W | 16.0 A | -20 to +40 °C |
| 13097.3-12 | Fan heater with integrated thermostat with internal temperature sensor | DC 56 V | 800 W | 20.0 A | -20 to +40 °C |
| 13097.3-13 | Fan heater with integrated thermostat with connector for external temperature sensor² | DC 56 V | 800 W | 20.0 A | -20 to +40 °C |
| 13092.1-03 | Fan heater with integrated hygrostat with connector for external humidity sensor² | DC 24 V | 200 W | 16.0 A | 40 to 90 % RH |
| 13095.3-03 | Fan heater with integrated hygrostat with connector for external humidity sensor² | DC 56 V | 600 W | 20.0 A | 40 to 90 % RH |
² The external sensor needs to be ordered separately.
³ Switch difference temperature: 3 K (±1 K tolerance) at +25 °C (+77 °F), 50 % RH; switch difference humidity: 4 % RH (±1 % tolerance) at +25 °C (+77 °F), 50 % RH.

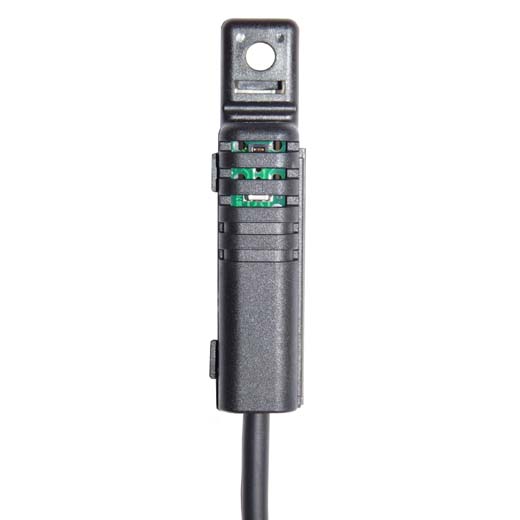

The external sensor is not included in the delivery of the DCR 130. It can be ordered separately.
The external sensor can be positioned freely anywhere in the enclosure for precise measurements of temperature and humidity.
| Art. No. | Length |
|---|---|
| 267071 | 1 m |
| 267072 | 2 m |
| 267126 | 3 m |
| Heating element | high performance cartridge |
|---|---|
| Temperature safety cut-out | with automatic reset and second-tier one shot fuse to protect against overheating in case of fan failure |
| Heater body | extruded aluminium profile |
| Axial fan, ball bearing | airflow 160 m³/h, free flow service life 50,000h at +25 °C (+77 °F) |
| Connection | 2-pole „Push-In“ connection clamp stranded wire1 1.5 mm² |
| Casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35 mm DIN rail, EN 60715 or screw fixing (M6), torque 2 Nm max., washers have to be used |
| Fitting position | vertical airflow (air outlet up) |
| Dimensions | 179 x 168 x 99 mm |
| Weight | approx. 1.3 kg |
| Operating temperature | -20 to +75 °C (-4 to +167 °F) |
| Storage temperature | -40 to +80 °C (-40 to +176 °F) |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type/Protection class | IP20 / II (double insulated) |
| Approvals | UL File No. E234324, VDE, EAC |
| Note | other versions (heating capacities, setting ranges) as well as operating voltage DC 48 V on request |
¹ When connecting with stranded wires, wire end ferrules must be used.
² The external sensor needs to be ordered separately.
³ Switch difference temperature: 3 K (±1 K tolerance) at +25 °C (+77 °F), 50 % RH; switch difference humidity: 4 % RH (±1 % tolerance) at +25 °C (+77 °F), 50 % RH.
