KTO 011 / KTS 011
Applies to: The mechanical thermostats KTO 011 and KTS 011 are two state regulators used to control heaters, coolers, filter fans or signal devices. KTO 011: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising. KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
download> Large setting range
> Small size
> Simple to mount
> High switching performance
The mechanical thermostats KTO 011 and KTS 011 are two state regulators used to control heaters, coolers, filter fans or signal devices.

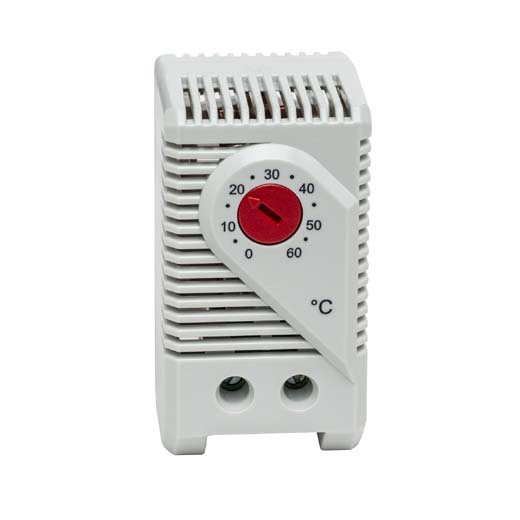

KTO 011: Thermostat (normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.

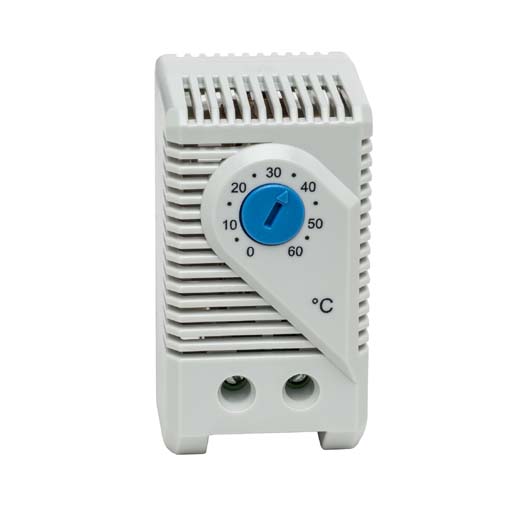

KTS 011: Thermostat (normally open); contact maker for regulating of filter fans and heat exchangers or for switching signal devises when temperature limit has been exceeded. The contact closes when temperature is rising.
Small Compact Thermostat KTO 011 / KTS 011 Series
| Setting range | Art. No. Contact breaker(NC) | Art. No. Contact maker (NO) | Approvals | |||
|---|---|---|---|---|---|---|
| 0至 +60 °C | 01140.0-00 | 01141.0-00 | VDE | - | - | EAC |
| -10至 +50 °C | 01142.0-00 | 01143.0-00 | VDE | UL 档案编码E164102 | - | EAC |
| +20至 +80 °C | 01159.0-00 | 01158.0-00 | VDE | UL 档案编码E164102 | CSA | EAC |
| +32至 +140 °F | 01140.9-00 | 01141.9-00 | VDE | UL 档案编码E164102 | CSA | EAC |
| +14至 + 122°F | 01142.9-00 | 01143.9-00 | VDE | UL 档案编码E164102 | CSA | EAC |
| 0至 +60 °C | 01146.9-00 | 01147.9-00 | VDE | UL 档案编码E164102 | CSA | EAC |
| Switch temperature difference | 7K (±4K tolerance) |
|---|---|
| Sensor element | thermostatic bimetal |
| Contact type | snap-action contact |
| Service life | > 100,000 cycles |
| Max. operating voltage | AC 250 V (VDE) AC 120 V (UL) |
| Max. inrush current | AC 16 A for 10 sec. |
| Connection | 2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm² (AWG 14) stranded wire1 1.5mm² (AWG 16) |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Casing | plastic according to UL94 V-0, light grey |
| Dimensions | 60 x 33 x 43 mm |
| Weight | approx. 40 g |
| Fitting position | variable |
| Operating/Storage temperature | -45 to +80 °C (-49 to +176 °F) |
| Operating/Storage humidity | max. 90 % RH (non-condensing) |
| Protection type | IP20 |
¹ When connecting with stranded wires, wire end ferrules must be used.
Important note: The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change. This can lead to a voltage drop and/or self-heating of the contacts.
