SD 035
Applies to: The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.
download> Quick connections
> Available with or without fuse
> DIN rail mountable
The DIN rail mounted electrical receptacle can be quickly fitted and connected in enclosures allowing the use of auxiliary products such as hand lamps and power tools. The unit is available with and without fuse, and in many world outlet standards.

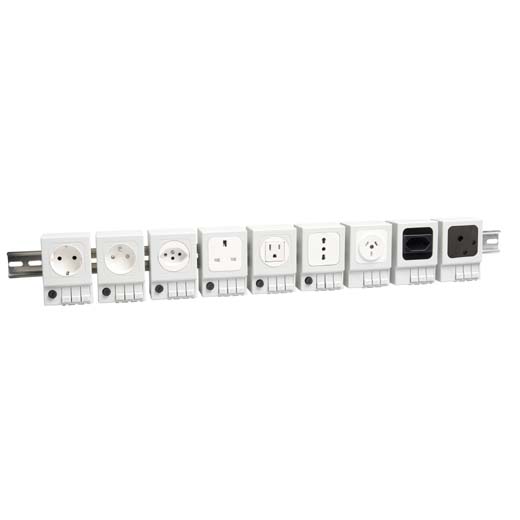

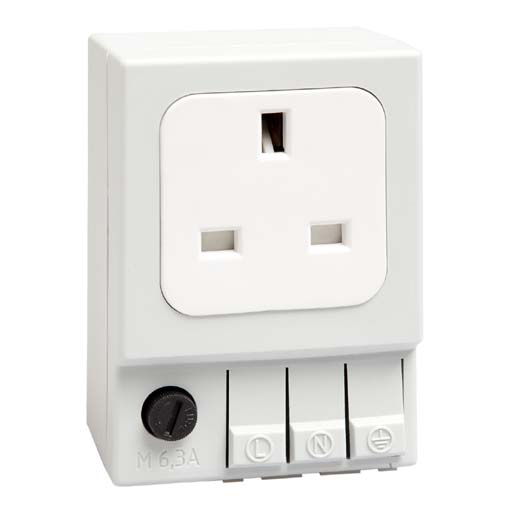

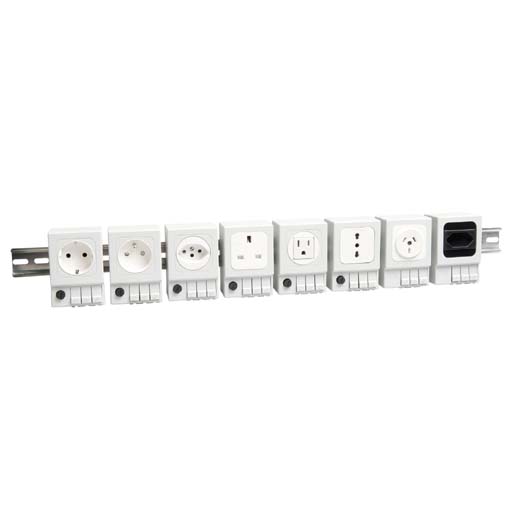

SD 035 Enclosure Receptacle
| Part No. | Operating voltage max. | Socket | Model | Nominal current | Approvals | |
|---|---|---|---|---|---|---|
| 03500.0-00 | AC 250 V | Germany/Russia (1) | with fuse1 | 6.3 A | - | EAC |
| 03500.0-01 | AC 250 V | Germany/Russia (1) | without fuse | 16.0 A | - | EAC |
| 03501.0-00 | AC 250 V | France/Poland (2) | with fuse1 | 6.3 A | - | - |
| 03501.0-01 | AC 250 V | France/Poland (2) | without fuse | 16.0 A | - | - |
| 03502.0-00 | AC 250 V | Switzerland (3) | with fuse1 | 6.3 A | - | - |
| 03502.0-01 | AC 250 V | Switzerland (3) | without fuse | 10.0 A | - | - |
| 03503.0-00 | AC 250 V | UK/Ireland (4) | with fuse1 | 6.3 A | - | - |
| 03503.0-01 | AC 250 V | UK/Ireland (4) | without fuse | 13.0 A | - | - |
| 03504.0-00 | AC 125 V | USA/Canada (5) | with fuse1 | 6.3 A | UL File No. E222026 | - |
| 03504.0-01 | AC 125 V | USA/Canada (5) | without fuse | 15.0 A | UL File No. E222026 | - |
| 03505.0-00 | AC 250 V | Italy (6) | with fuse1 | 6.3 A | - | - |
| 03505.0-01 | AC 250 V | Italy (6) | without fuse | 16.0 A | - | - |
| 03507.0-01 | AC 240 V | Australia (7) | without fuse | 10.0 A | - | - |
| 03508.0-01 | AC 250 V | Brazil (8) | without fuse | 10.0 A | - | - |
| 03509.0-01 | AC 250 V | Old British - BS 546 (9) | without fuse | 5.0 A | - | - |
¹ fuse Ø 5 x 20 mm
| Connection | 3 cage clamps for solid and stranded wire AWG 20-14 (0.5-2.5 mm²) |
|---|---|
| Housing | plastic, UL94 V-0, light grey |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Mounting position | vertical |
| Operating / Storage temperature | -49 to +158 °F (-45 to 70 °C) |
| Operating / Storage humidity | max. 90 %RH (non-condensing) |
| Dimensions | 3.6 x 2.4 x 1.9” (92 x 62 x 48 mm) |
| Weight | approx. 7 oz. (200 g) |
| Protection class / Protection type | I (grounded) / IP20 |
