DA 284
Applies to: Pressure differentials in a hermetically sealed enclosure are a result of the heat generated by electrical and electronic components in the enclosure, as well as the fluctuation of the outside temperature. In the case of negative pressure or vacuum, for example, dust and humidity can enter the enclosure through the door seal. The DA 284 Stainless Steel Vent Plug provides a protected enclosure environment for valuable and crucial components with an IP66 rated degree of protection. A waterproof membrane inside the device allows air and humidity to
download> High degree of protection (IP66) > Easy to install
> Waterproof membrane > Two sizes - M40 & M12
> Corrosion resistant
Pressure differentials in a hermetically sealed enclosure are a result of the heat generated by electrical and electronic components in the enclosure, as well as the fluctuation of the outside temperature. In the case of negative pressure or vacuum, for example, dust and humidity can enter the enclosure through the door seal.
The DA 284S Stainless Steel Vent Plug provides a protected enclosure environment for valuable and crucial components with an IP66 rated degree of protection. A waterproof membrane inside the device allows air and humidity to leave the enclosure while not allowing moisture and dust from the outside to enter.

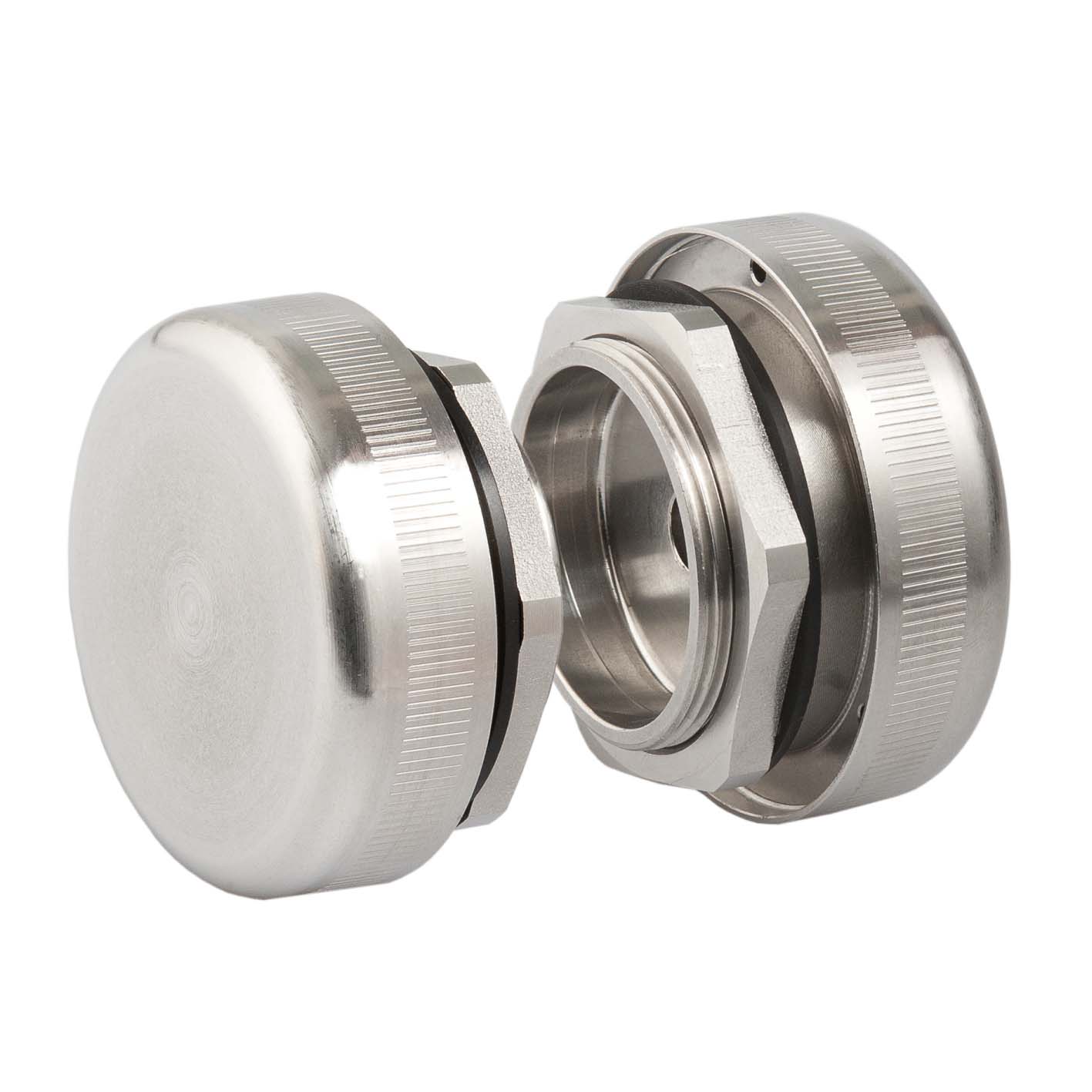

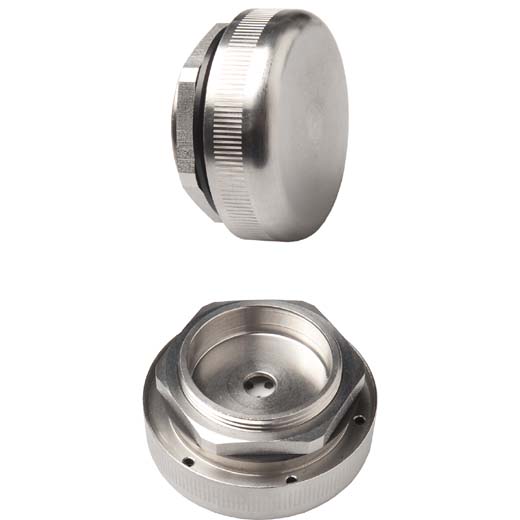

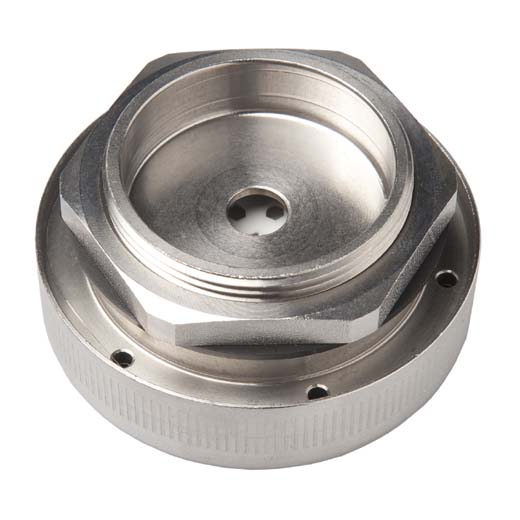

Stainless Steel Vent Plug DA 284 Aluminium Vent Plug DA 284
| Part No. | Stainless steel | Model | Thread length (depth in enclosure) | Protection type | Air permeability¹ | 1 packing unit | Weight (approx.) |
|---|---|---|---|---|---|---|---|
| 28401.0-00 | V2A (DIN 1.4305 / AISI 303)1 | M40 x 1.5 | approx. 9 mm | IP66 (EN 60529) / IPX9K (EN 40050-9) | 1200 liters/hr | 1 piece | 5.6 oz. (160 g) |
| 28401.0-02 | V4A (DIN 1.4404 / AISI 316L) | M40 x 1.5 | approx. 9 mm | IP66 (EN 60529) / IPX9K (EN 40050-9) | 1200 liters/hr | 1 piece | 5.8 oz. (165 g) |
| 28402.0-01 | V2A (DIN 1.4305 / AISI 303)² | M12 x 1.5 | approx. 4 mm | IP66 (EN 60529) | 120 liters/hr | 1 piece | 0.6 oz. (17 g) |
1 at a pressure difference of min. 70 mbar; ² V2A is not sea waterproof
| Mounting | thread with nut |
|---|---|
| Torque | 5 Nm |
| Sealing | NBR gasket |
| Filter | waterproof membrane |
| Operating / Storage temperature | -49 to +176 °F (-45 to 80 °C) |
| Protection type | see below |
| Approvals | EAC |
Installation
Make cut-out in enclosure wall of diameter 1.58 inches (40-40.2 mm) for size M40 or 0.48" (12-12.2 mm) for size M12, and mount vent plug with nut. Make sure that the sealing gasket is placed on the outer side of the enclosure. For optimal pressure compensation, it is recommended to use two devices on opposite sides towards the top of the enclosure.
