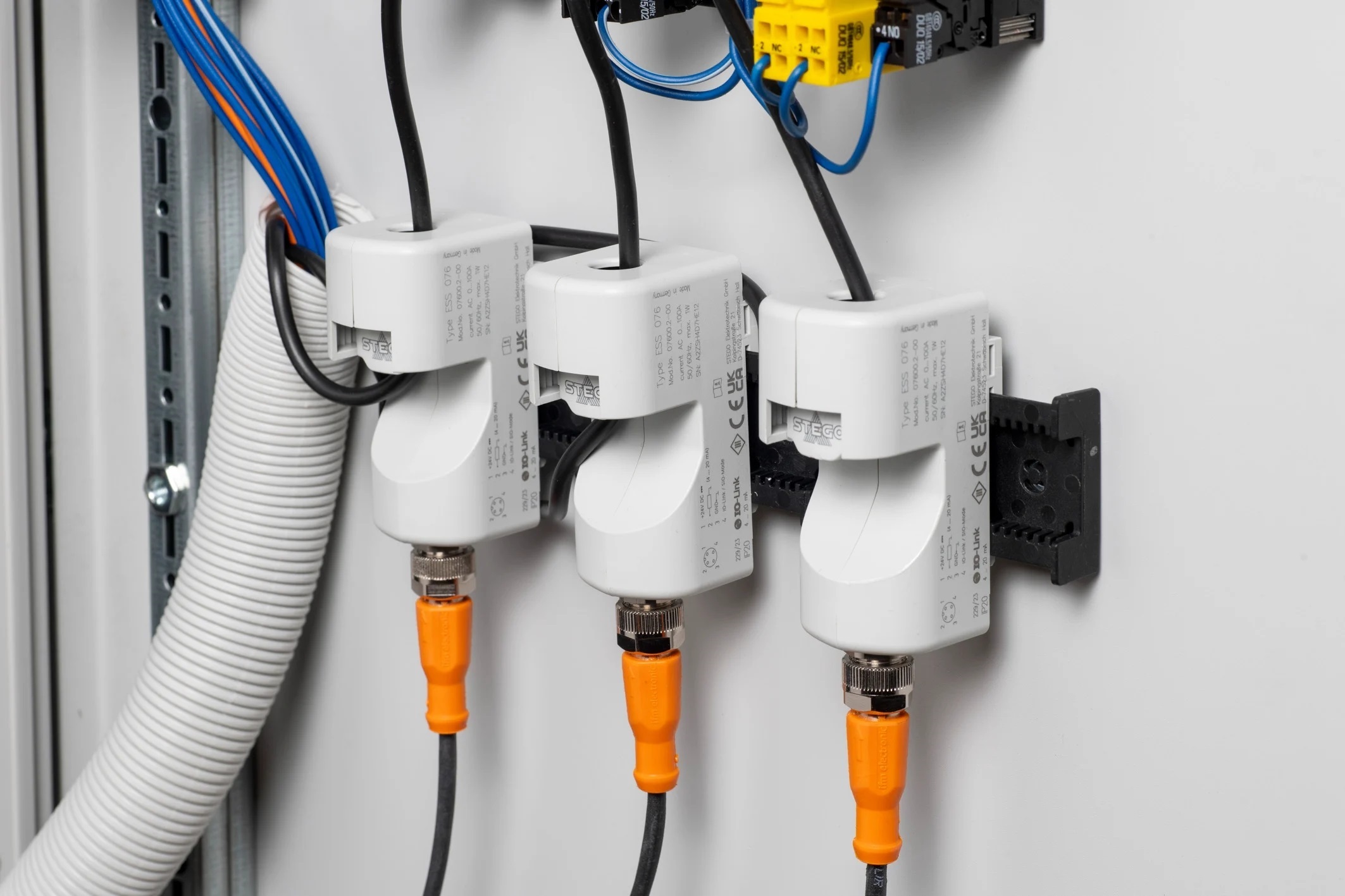

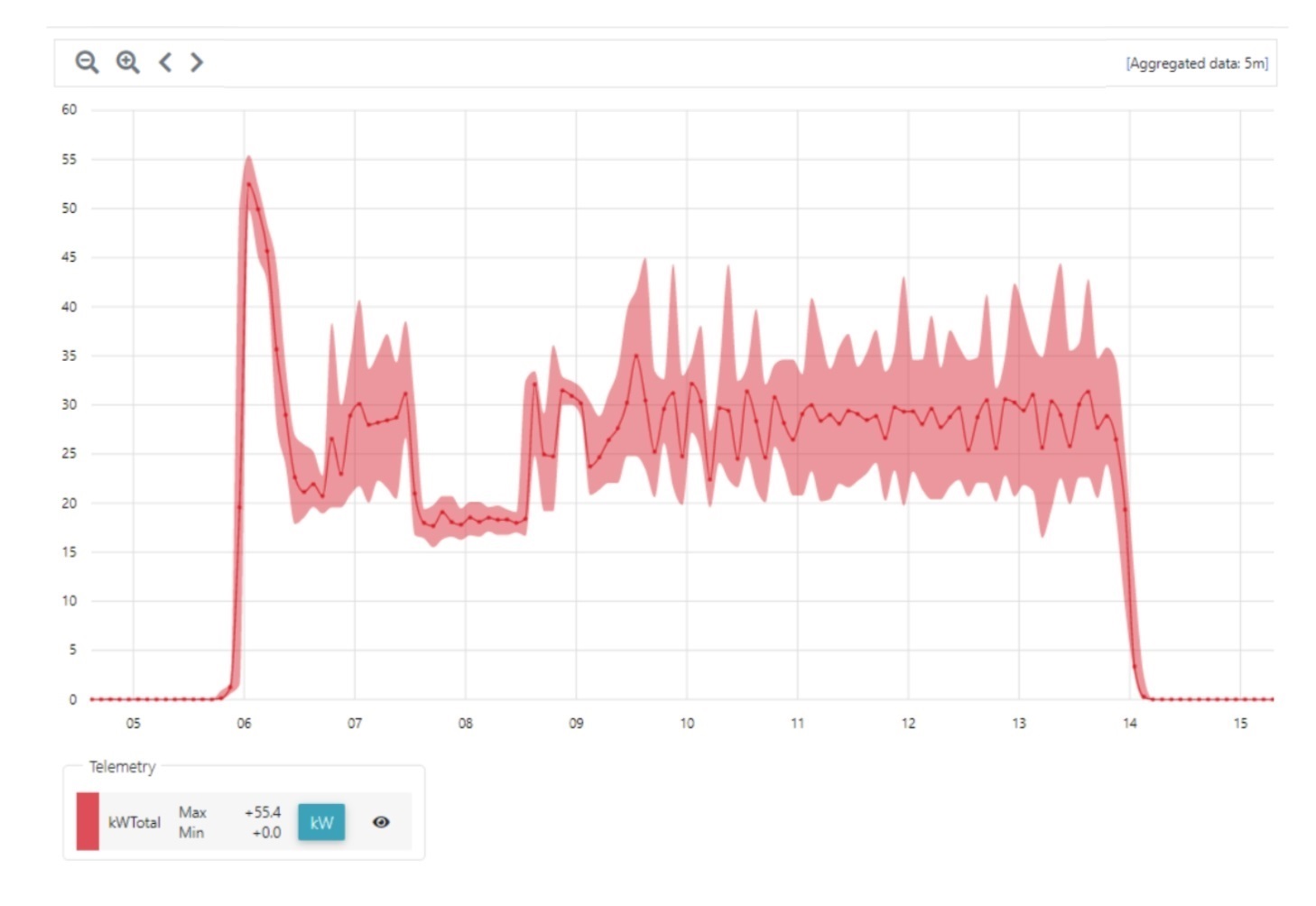

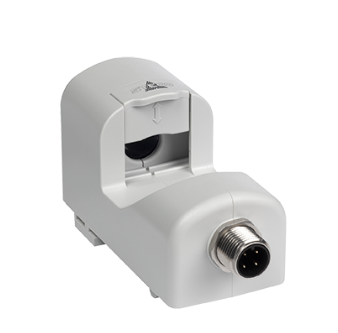

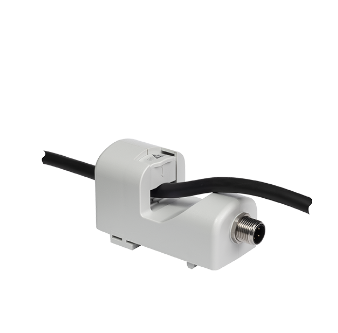

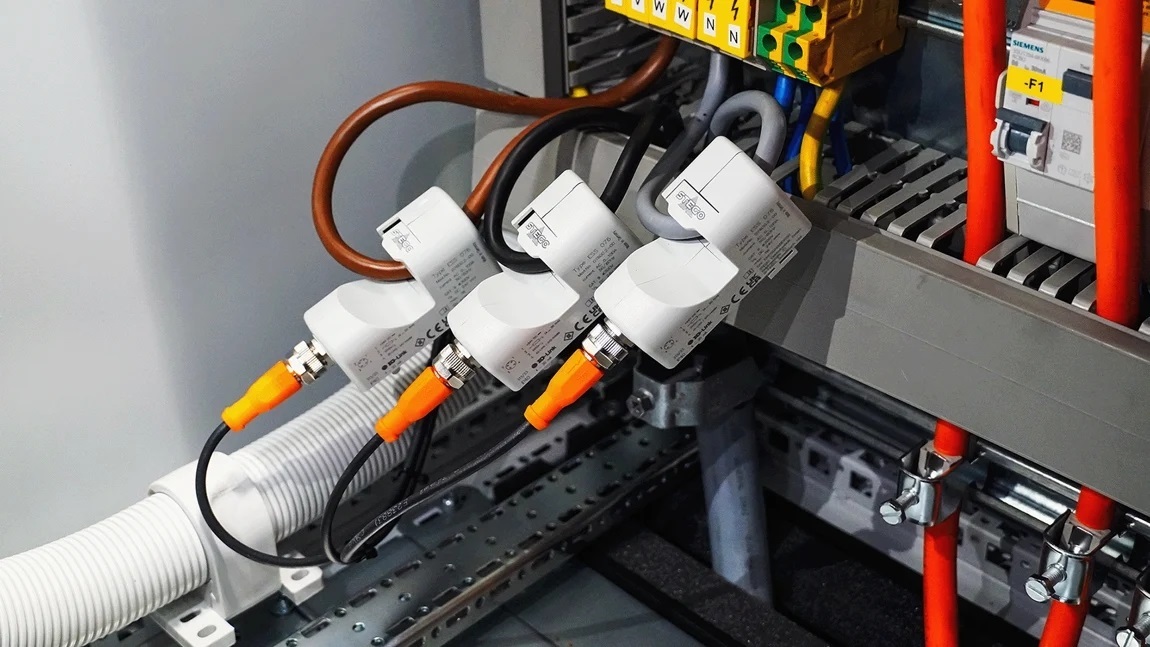

The ESS 076 Smart Sensor Current measures the AC current of energised cables without contact. Recorded measurement data is output in analogue (4-20 mA signal) or digital (IO-Link) form. Measured and processed data - such as power and energy - is made available to higher-level systems such as machine control systems or edge computers for condition monitoring via the IO-Link interface.

• Measures AC current up to 100 A contactless

• Cable diameter up to 11.4 mm

• Internal processing of measured values

• Analogue and digital interface in one device
