HG 140 | 15W TO 150W
Applies to: These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.
download> Pressure clamp connectors > Energy saving
> Dynamic heating up > fixing
> Wide voltage range > installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

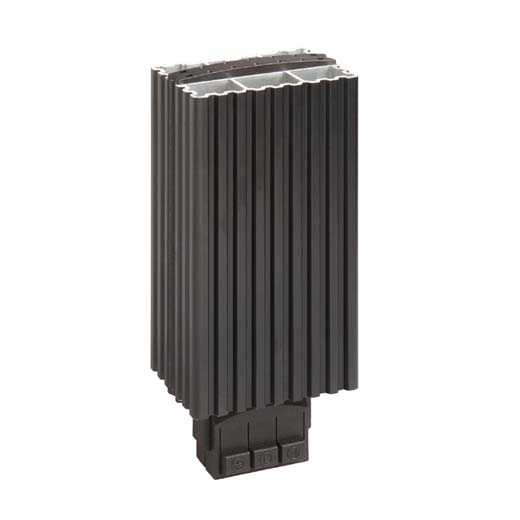

Semiconductor Heater HG 140 Series
| Art. No. | Heating capacity² | Inrush current max. | Recommended pre-fuse T (time-delay) | Length (L) | Weight (approx.) |
|---|---|---|---|---|---|
| 14000.0-00 | 15W | 1.5A | 2.0A | 65mm | 0.3kg |
| 14001.0-00 | 30W | 3.0A | 4.0A | 65mm | 0.3kg |
| 14003.0-00 | 45W | 3.5A | 4.0A | 65mm | 0.3kg |
| 14005.0-00 | 60W | 2.5A | 4.0A | 140mm | 0.4kg |
| 14006.0-00 | 75W | 4.0A | 6.3A | 140mm | 0.5kg |
| 14007.0-00 | 100W | 4.5A | 8.0A | 140mm | 0.5kg |
| 14008.0-00 | 150W | 9.0A | 10.0A | 220mm | 0.7kg |
| Operating voltage | 120-240V AC/DC¹ (min. 110V, max. 265V) |
|---|---|
| Heating element | PTC resistor - temperature limiting |
| Heater body | extruded aluminium profile, anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire |
| end ferrule) and rigid wire 0.5- 2.5mm² | |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up, connection on bottom) |
| Operating/Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating/Storage humidity | max. 90% RH (non-condensing) |
| Protection type/Protection class | IP20 / I (earthed) |
| Approvals | VDE, UL File No. E150057, EAC |
| Accessoires | screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces) |
| Note | other voltages on request |
¹ Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.
² at +20°C (+68°F) ambient temperature
